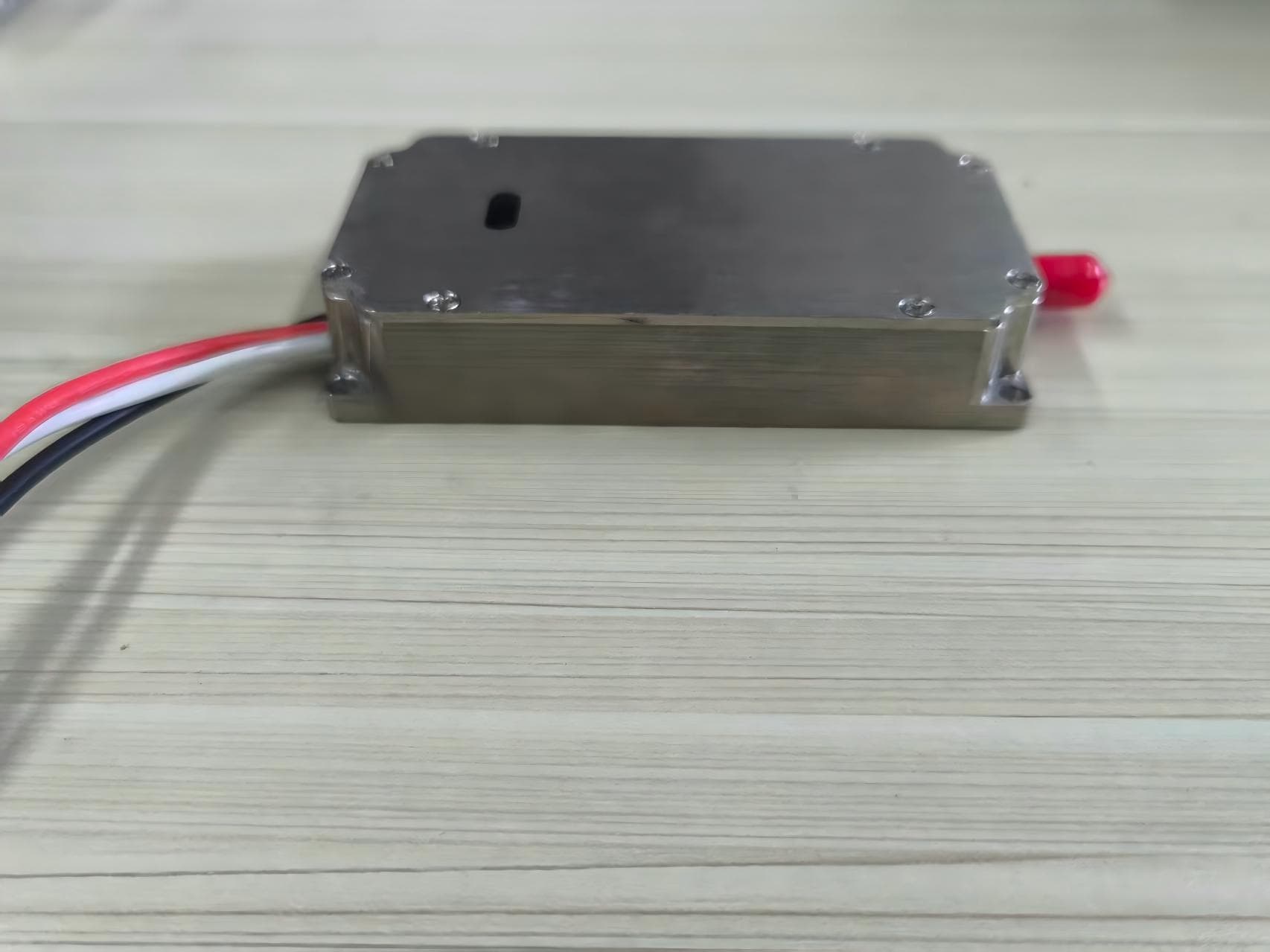

RF power amplifier moduleUHF Radio Communication / Private NetworkSMA-Female
410-480M 10W
Solid-state RF power amplifier module · 410 – 480 MHz · 10 W
- Frequency range
- 410 – 480 MHz
- Output power
- 10 W≥ 40 dBm
- Efficiency
- ≥ 50%
- RF connector
- SMA-Female
- Dimensions (L × W × H)
- 83 × 45.2 × 15.6 mm
- Weight
- 80 g
Datasheet
Generated automatically from the live specification data, so it is always in sync with this page.
Need pricing or integration guidance?
Share your target band, power requirements and quantity. Our team will confirm the fit, provide lead times and supply qualification documents.
- +86 15766274516
- michelle@volaer-amp.com
Frequency & Bandwidth Customizable
Contact us for custom configurations. Any band from 400 MHz to 6 GHz, custom bandwidth, connector type and enable logic are available on this platform — built to order from MOQ 1 pc.
Technical specifications
Guaranteed limits are marked ≤ / ≥. The same data feeds the downloadable datasheet.
RF performance
- Frequency range
- 410 – 480 MHz
- Output power
- 10 W (≥ 40 dBm)
- In-band gain flatness
- ≤ ±1.5 dB
- EVM
- ≤ 5%
- Efficiency
- ≥ 50%
- Output VSWR tolerance
- ≤ 10:1
Electrical
- Operating voltage
- 28 V DC (24 – 32 V)
- Enable voltage
- 28 V (customizable)
- Power interface
- Flying leads (Red: +28 V, Black: GND, White: Enable)
Mechanical
- RF connector
- SMA-Female
- Dimensions (L × W × H)
- 83 × 45.2 × 15.6 mm
- Weight
- 80 g
Environmental
- Operating temperature
- −40 – +55 °C
- Storage temperature
- −40 – +85 °C
- Relative humidity
- 5% – 95% RH, non-condensing
